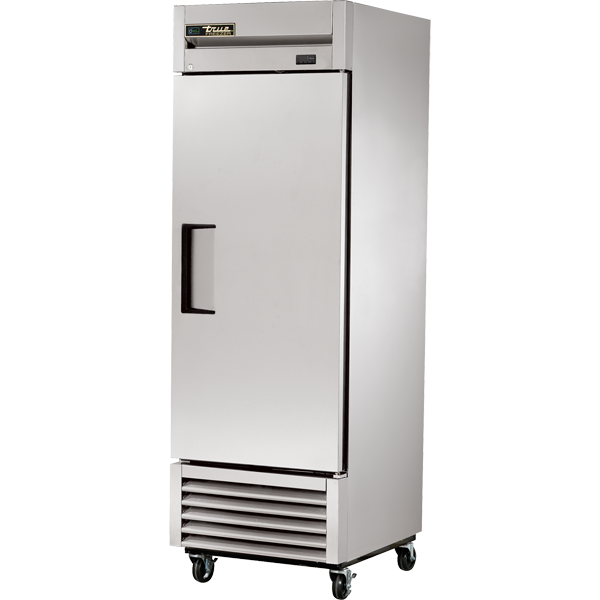

TS-23F-HC Reach-In Solid Swing Door Stainless Steel Freezer with Hydrocarbon Refrigerant

True’s TS series is the choice for the exclusive stainless steel commercial application. Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace. High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream. Stainless steel interior and exterior front, sides and doors. The very finest stainless with higher tensile strength for fewer dents and scratches. Matching aluminum back. Adjustable, heavy duty PVC coated gray shelves. Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system. Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.

Design

• True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing unit positioned for easy maintenance. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.
• Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.

Cabinet Construction

• Exterior - Stainless steel door, front and sides. Corrosion resistant GalFan coated steel back.
• Interior - Stainless steel liner and floor.
• Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

Door

• Stainless steel exterior and liner. Door extend full width of cabinet shell. Door lock standard.
• Lifetime guaranteed recessed door handle. Door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
• Positive seal self-closing door. Lifetime guaranteed door hinges and torsion type closure system.
• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

Shelving

• Three (3) adjustable, heavy duty PVC coated gray wire shelves 22–7/8"L x 23–1/4"D (582 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
• Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.

Lighting

• Interior lighting -safety shielded. Lights activated by rocker switch mounted above door.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
• NEMA-5-15R
