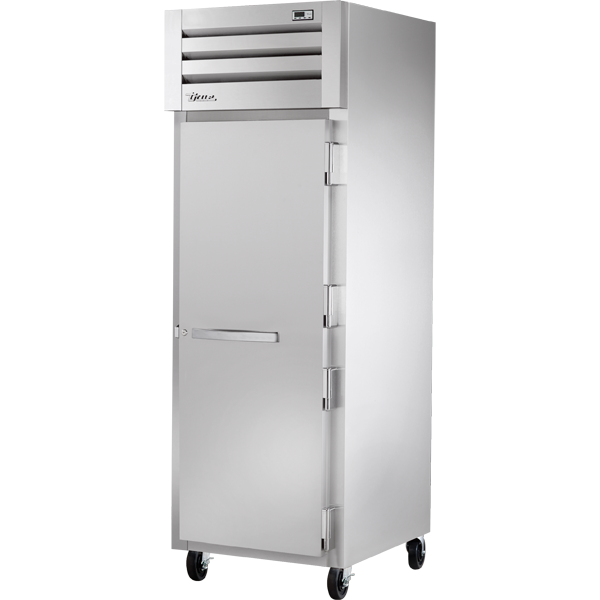

STG1R-1S-HC Reach-In Solid Swing Door Refrigerator with Hydrocarbon Refrigerant

Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). High capacity, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C) for best food preservation in extreme conditions. Exterior – stainless steel doors and front, with matching aluminum sides. Interior – aluminum side walls and back. Stainless steel floor and ceiling. (3) Heavy duty, PVC coated, wire shelves per section. Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed door hinges. Lifetime guaranteed heavy duty all metal working door handle. Entire cabinet structure and solid door are foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Design

• True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
• Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.

Cabinet Construction

• Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Door

• Lifetime guaranteed bolt style door lock standard.
• Lifetime guaranteed heavy duty all metal working door handle.
• Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

• Three (3) heavy duty PVC coated wire shelves 26–5/16" x 21–9/16" (669 mm x 548 mm). Four (4) shelf supports included per shelf (field installed). Shelves adjustable on 6" (153 mm) increments.

Lighting

• LED interior lighting, safety shielded.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
• 115/60/1 NEMA-5-15R
