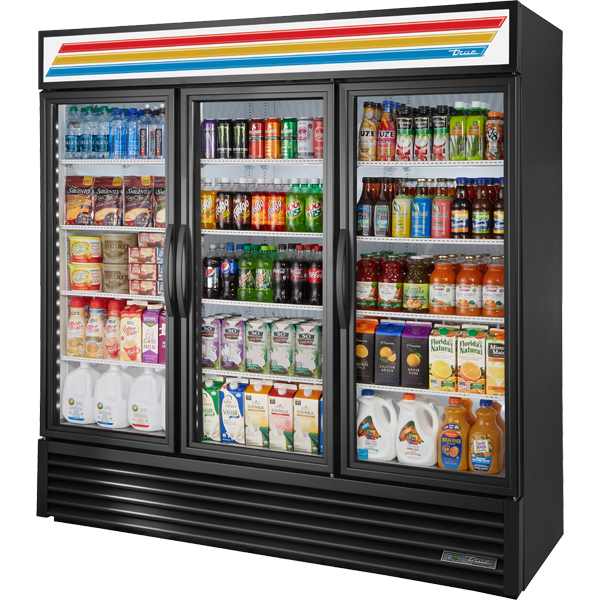

GDM-72-HC~TSL01 Swing Door Refrigerator with Hydrocarbon Refrigerant~True Standard Look Version 01

The world’s #1 manufacturer of glass door merchandisers. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). High capacity, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C) for best food preservation in extreme conditions. Exterior – non-peel or chip black powder coated cold rolled steel; durable and permanent. Interior – attractive, white aluminum interior liner with stainless steel floor. Double pane thermal insulated glass swing doors. Black powder coated. Self closing doors. Positive seal, torsion type closure system. LED interior lighting provides more even lighting throughout the cabinet. Safety shielded. Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Design

• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.

Cabinet Construction

• Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
• Interior - attractive, white aluminum liner with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.

Doors

• Double pane thermal insulated glass swing doors. Black powder coated frames.
• Each door fitted with 12” (305 mm) long extruded handle.
• Self closing doors. Positive seal, torsion type closure system.
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

• Twelve (12) adjustable, heavy duty PVC coated wire shelves 24–1/8”L x 20–3/4”D (613 mm x 528 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

Lighting

• LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
• 115/60/1 NEMA-5-15R
