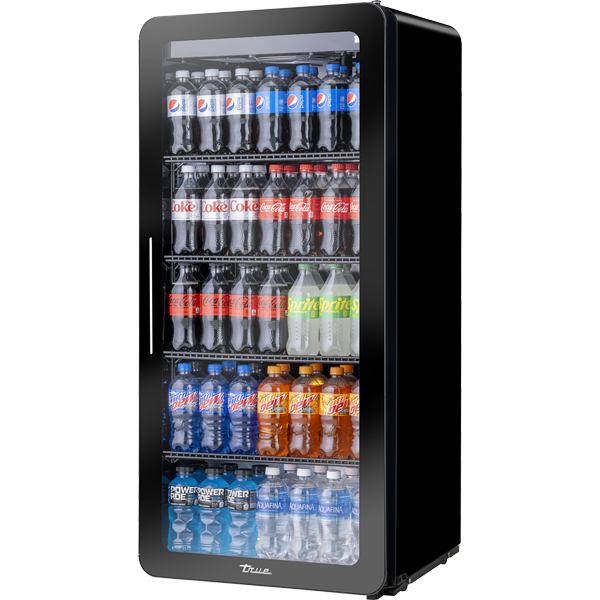

CVM-11-HC~EGC01 Swing Door Curved Edge Refrigerator with Hydrocarbon Refrigerant~Edge Glass Curved Version 01

The world’s #1 manufacturer of glass door merchandisers. The curved-edged door design has a built-in handle for opening the door from the top or side. Illuminated handle position indicator. Uses environmental friendly R290 Hydrocarbon refrigerant. Energy efficient, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C). Self-Cleaning RCU Technology eliminates the need for cleaning of condenser coil, reduces energy consumption and helps maintain the coldest temperature and freshest product.

Design

• True’s Contemporary Series is built with durability, stability, and style in mind. Through the series’ curved edge design it redefines merchandising with its inspired product displays and increased beverage storage.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

Cabinet Construction

• Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
• Interior - attractive, white aluminum interior liner with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• 2" (51mm) integrated rollers standard.
• Door sign decal. Variety of decal options available.

Door

• “Low-E”, double pane thermal insulated glass door assembly with mitered plastic channel frame. The latest in energy efficient technology.
• The door features an integrated LED handle indicator for a sleek, modern appearance.
• Self closing door. Positive seal, torsion type closure system.
• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
• Edge door will not change when an alternative interior or exterior finish is ordered.

Shelving

• Four (4) adjustable, heavy duty PVC coated wire shelves 20–5/8”L x 17–1/2”D (524 mm x 445 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.

Lighting

• LED interior lighting, safety shielded.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
• 115/60/1 NEMA-5-15R
